Finishing

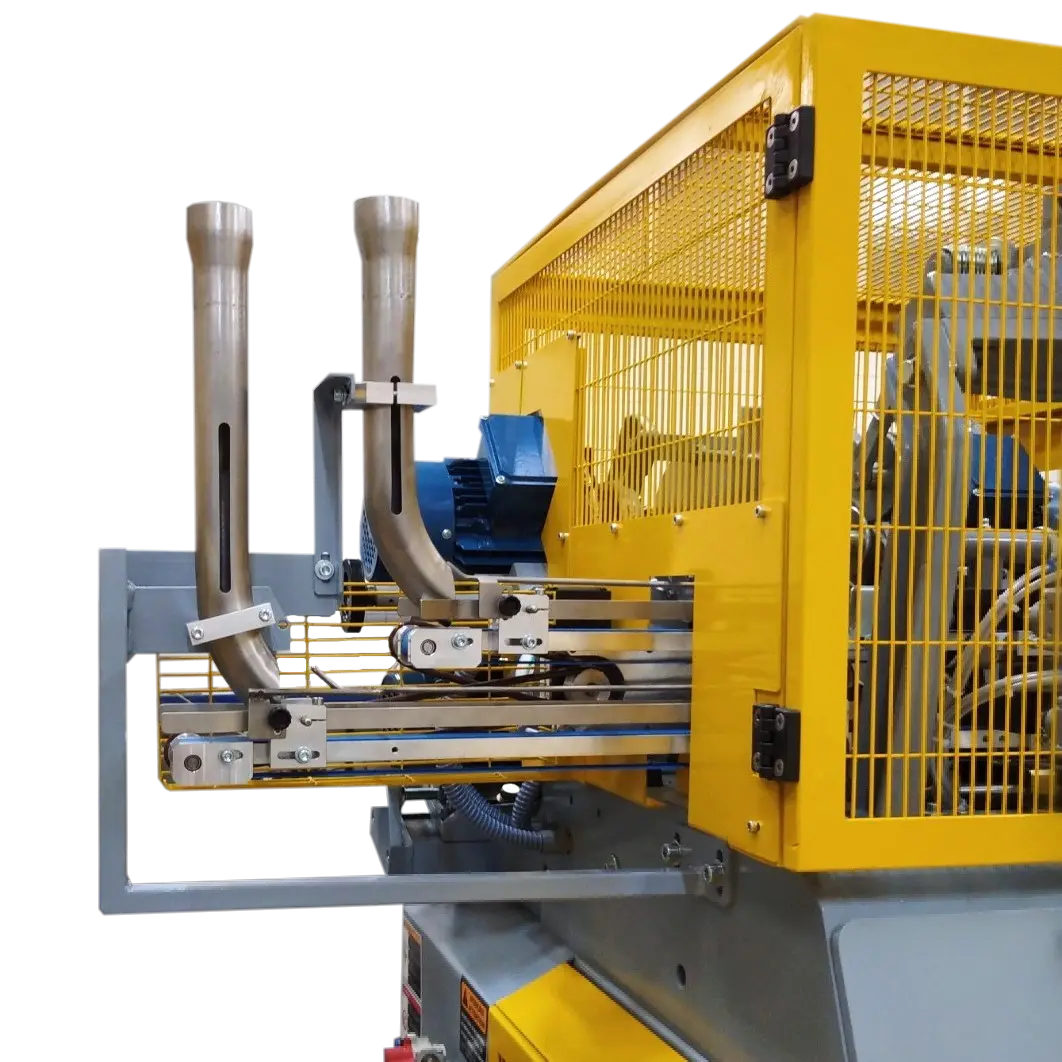

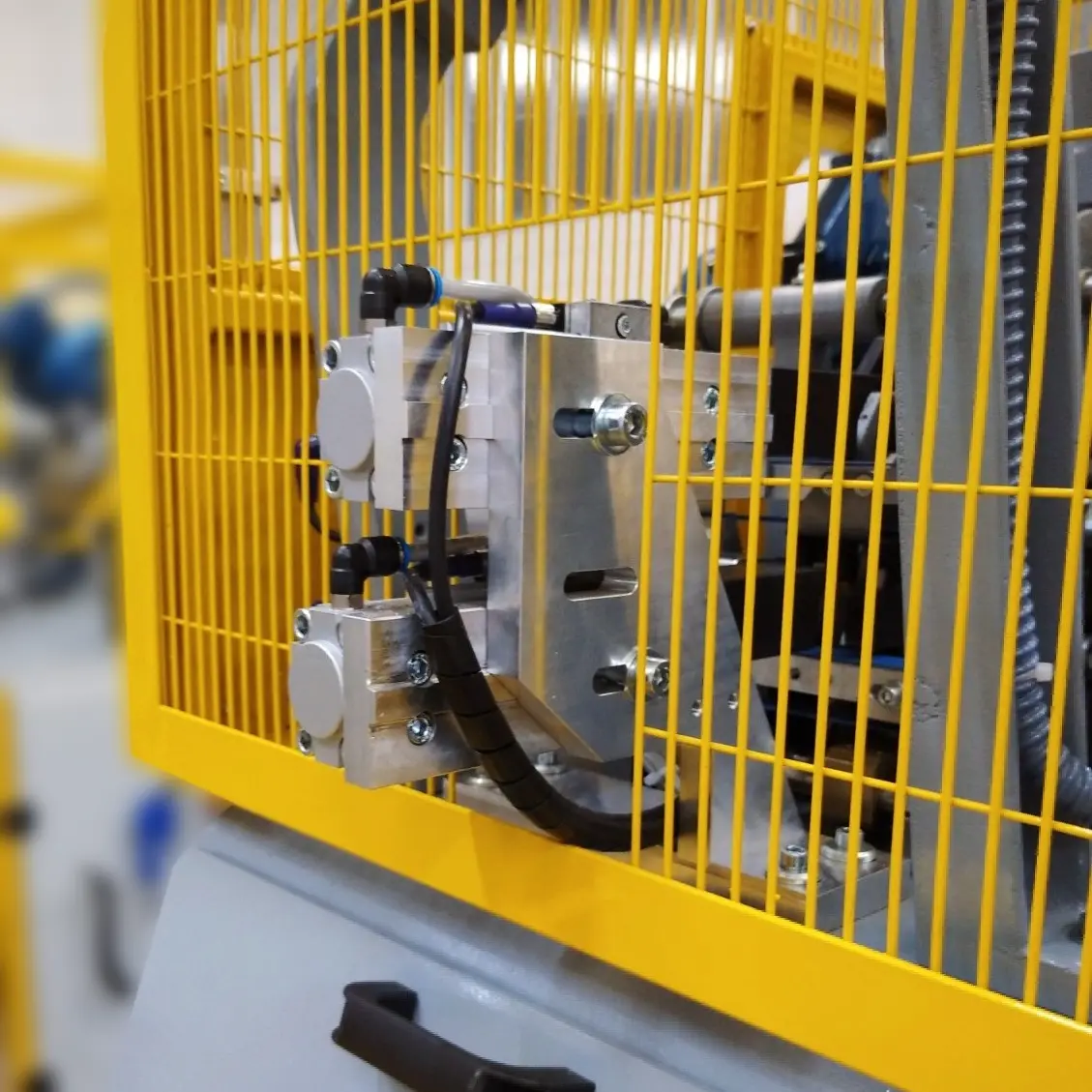

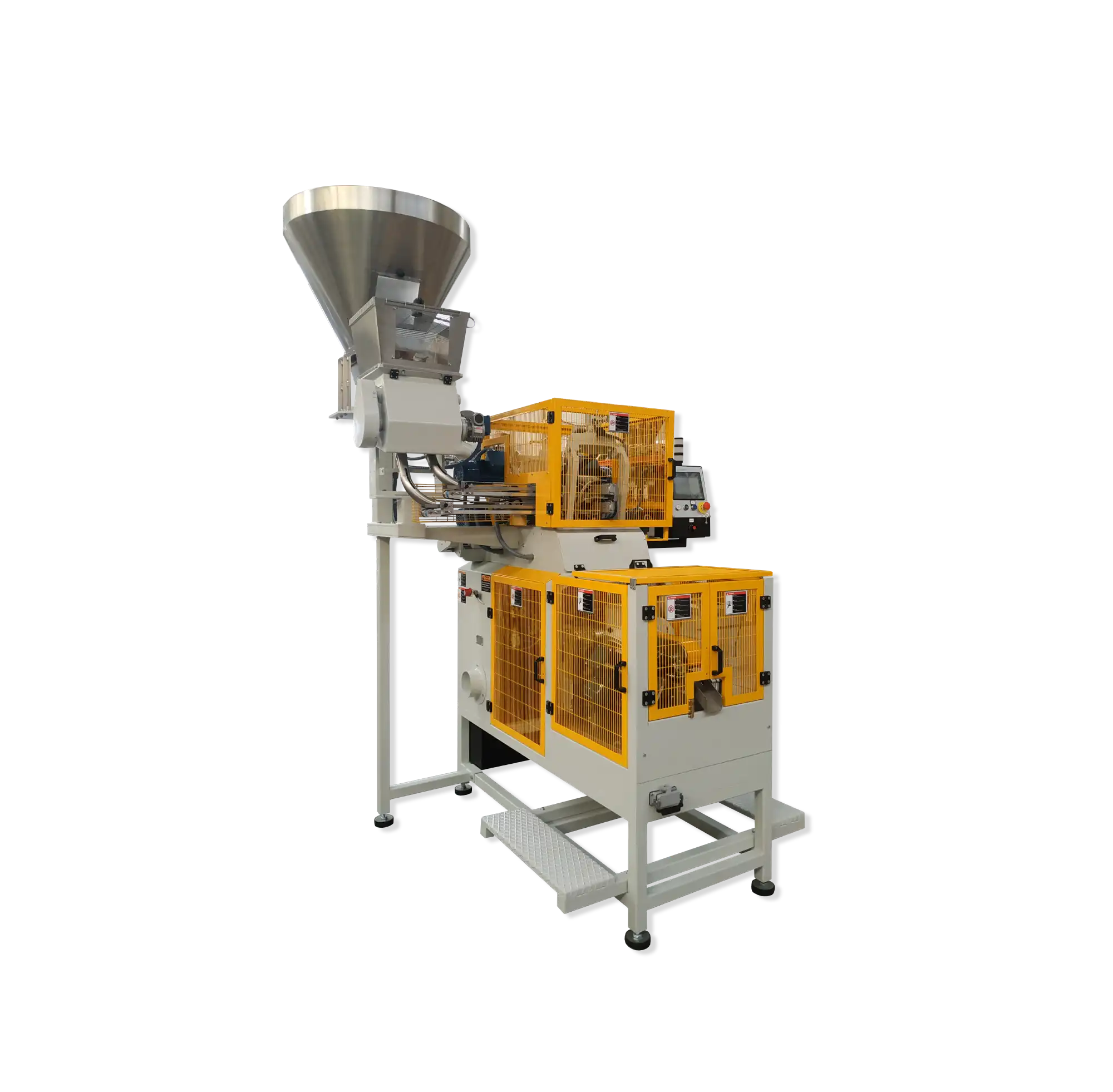

TCR-100 Tops Rectifying & Chamfering Equipment

Imagem Detail
Imagem Detail
Imagem Detail
Imagem Detail

TECHNICAL FEATURES:
    ▪ Power Supply 415/240 V (3Ph+N+T) 50 Hz
    ▪ Compressed Air Supply 5 to 7 bar
    ▪ Installed Power 6.0 kW
    ▪ Noise < 70 dB
    ▪ Nominal Cadence 12 000 corks/hour (champagne corks)
    ▪ Admissible stopper diameters: 23mm; 31mm (min; max)
    ▪ Admissible cork length: 33mm; 54mm (min;max)

GENERAL FEATURES:
    ▪ Machine controlled and monitored by the HMI;
    ▪ 3 operation modes: tops/ chamfering; only chamfering or only tops;
    ▪ Possibility to apply corks cutting subsystems;
    ▪ Feeding systems to be defined by the customer.
