Finishing

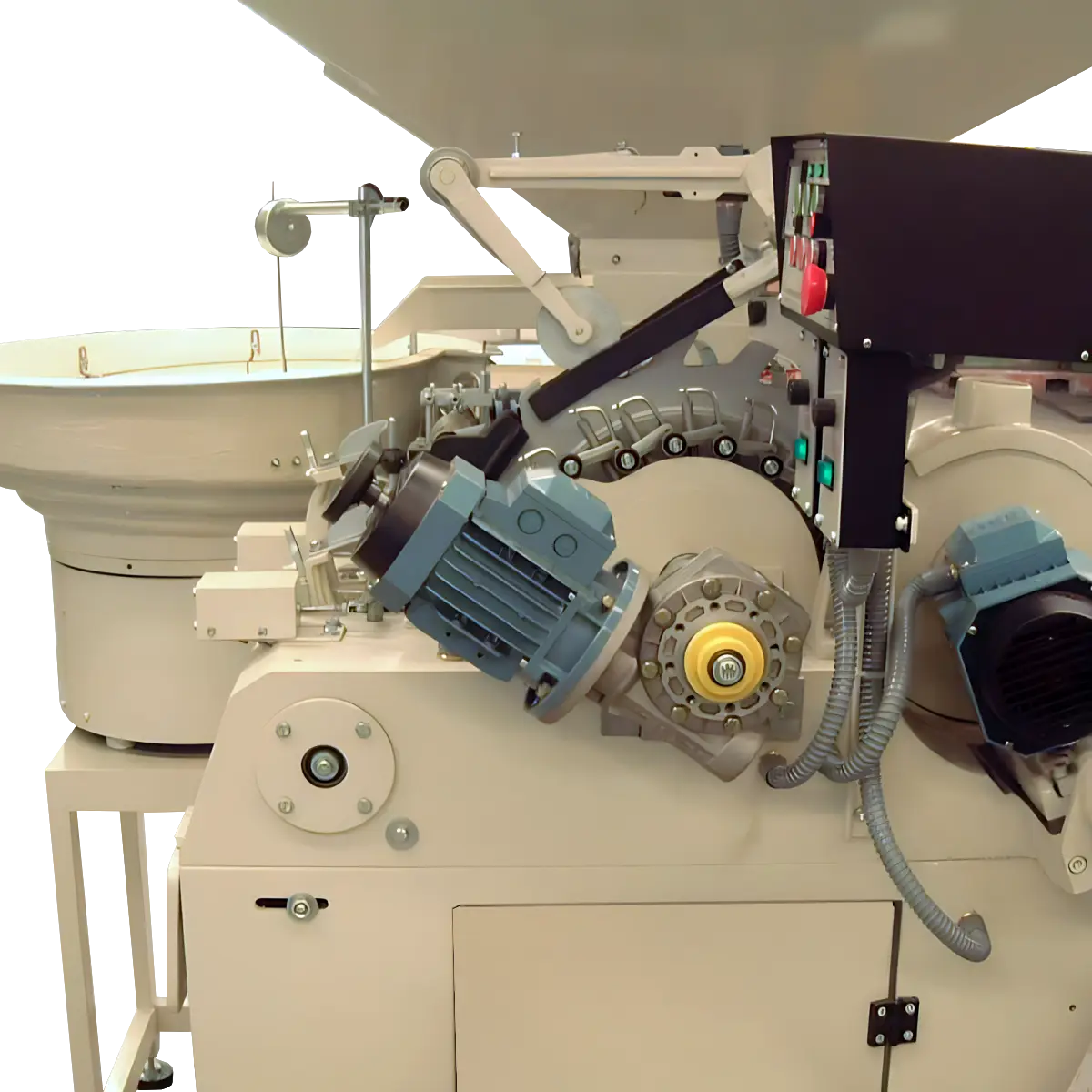

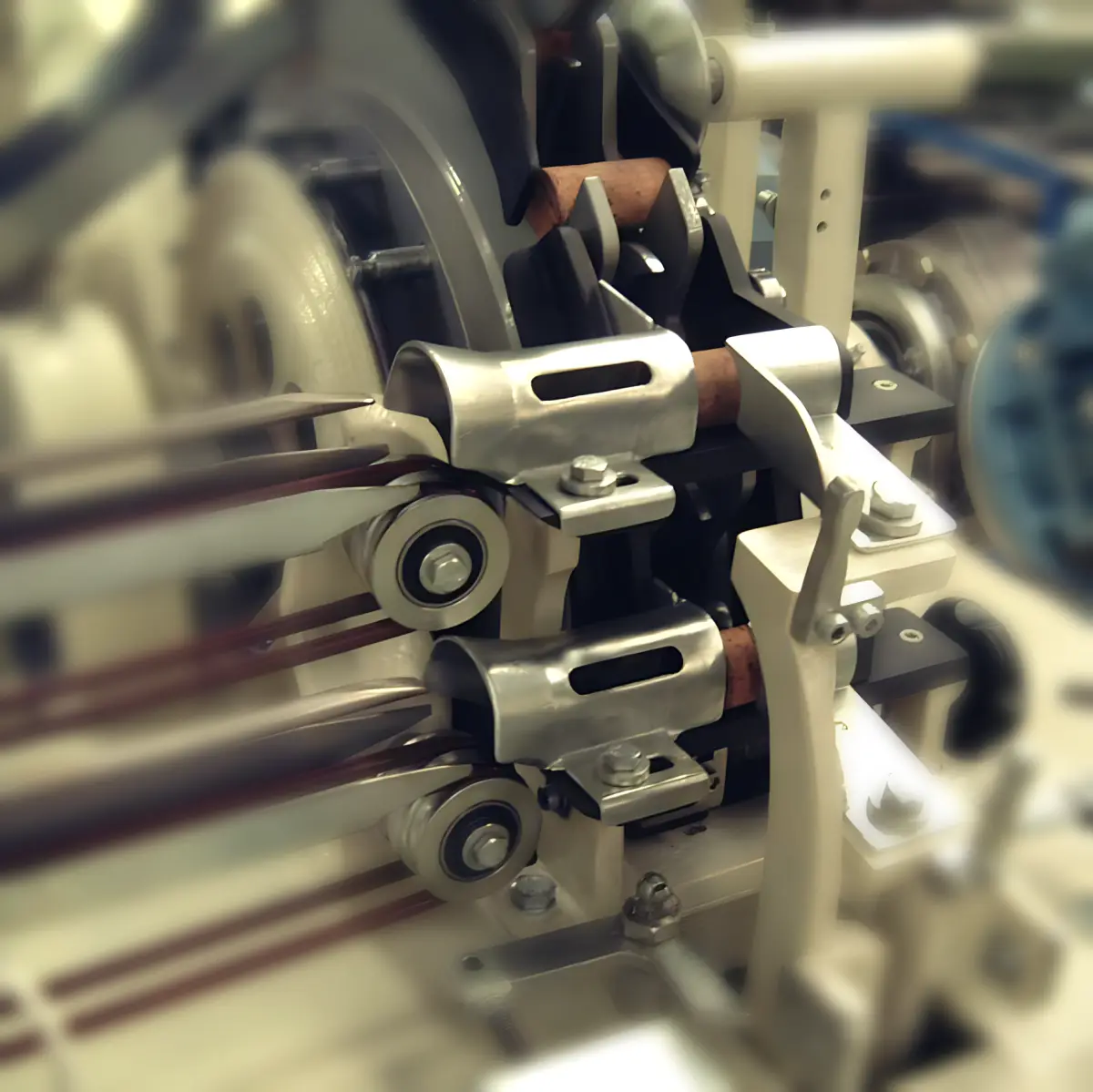

MT-94 Tops Rectifying Machine with Vibrator

Imagem Detail
Imagem Detail

TECHNICAL FEATURES:
    ▪ Power Supply 415/240 V (3Ph+N+T) 50 Hz;
    ▪ Compressed Air Supply 5 to 7 bar;
    ▪ Installed Power 4.5 kW;
    ▪ Noise < 70;
    ▪ Nominal Cadence 15 000 corks/hour (24x38 mm);
    ▪ Admissible cork diameters: 19mm; 21mm (min; max);
    ▪ Admissible cork length: 22mm; 54mm (min;max).

GENERAL FEATURES:
    ▪ Monitoring the effort made by the sandpaper;
    ▪ Feeding system consists of hopper + doser + vibrator;
    ▪ Corks output can be choosen by the customer (front or backwards);
    ▪ Possibility to apply corks cutting subsystems.
