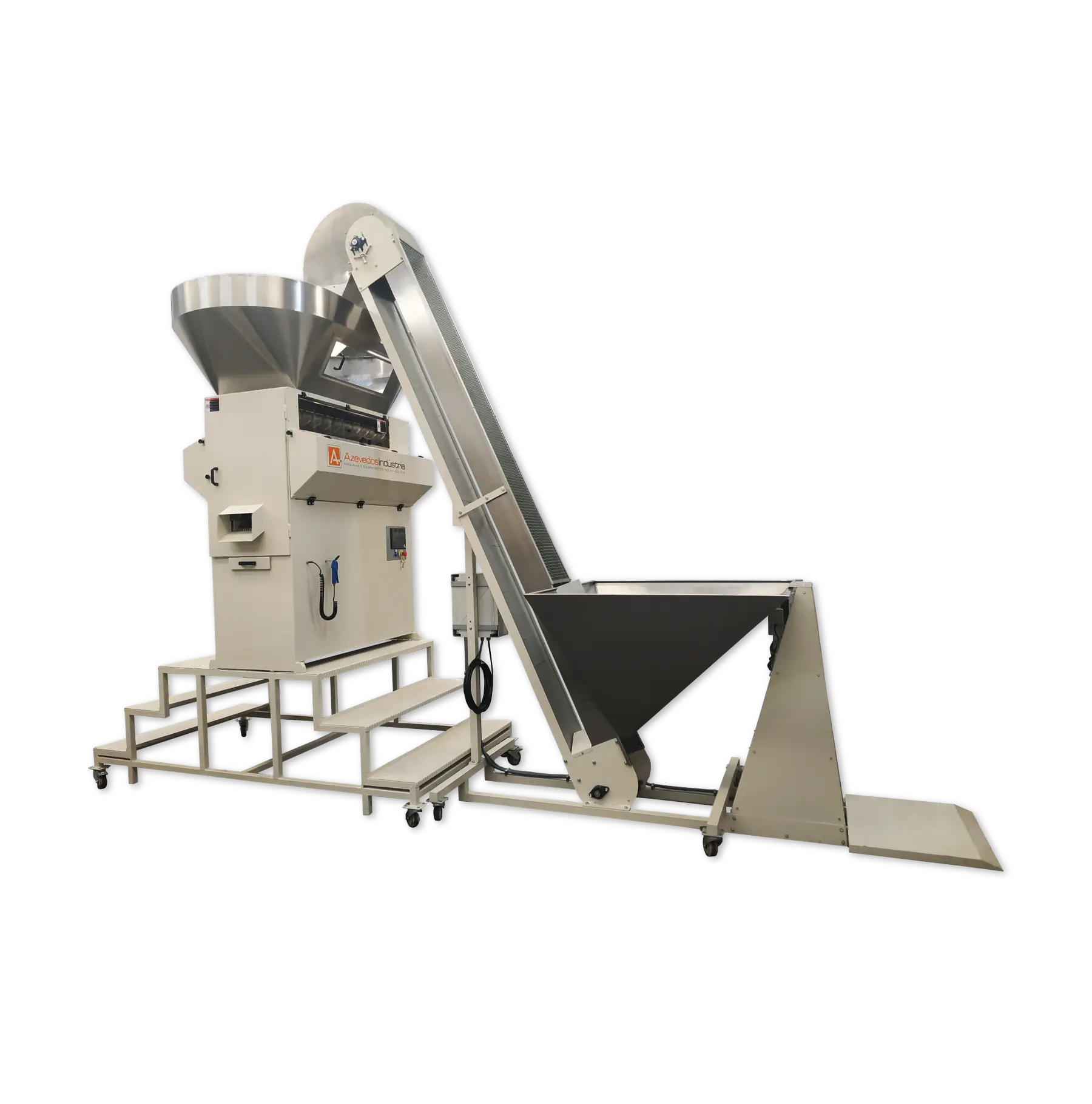

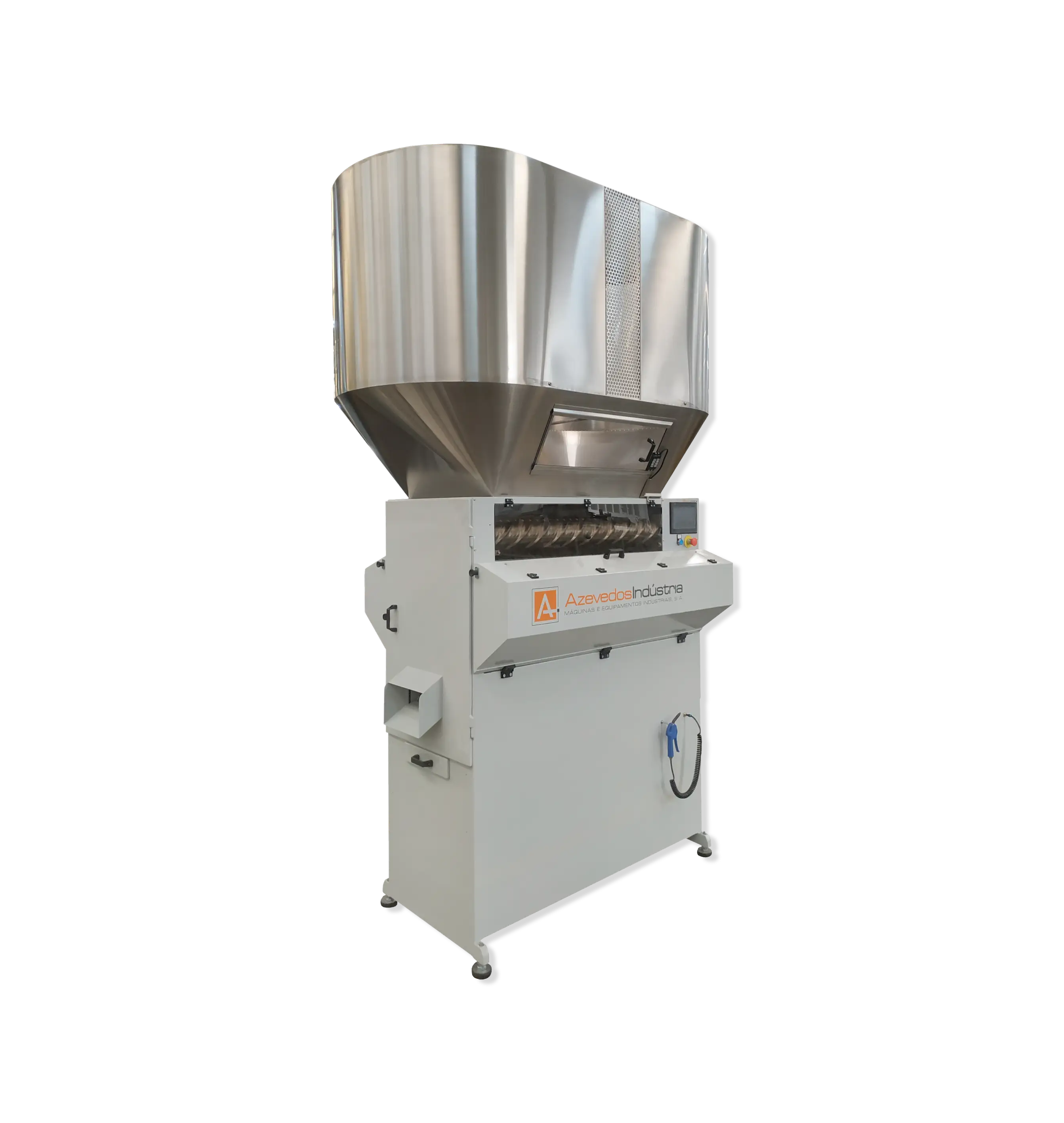

MCE-12/24/48 Electronic Counting Machine (12, 24, 48 Channels)

Imagem Detail
Imagem Detail
Imagem Detail

TECHNICAL FEATURES:
    ▪ Power Supply 415/240V (3Ph+N+T) 50Hz;
    ▪ Compressed Air Supply 5 to 7 bar;
    ▪ Installed Power:
        ▫ MCE-12/24: 0.75 kW;
        ▫ MCE-48: 1.5 kW;
    ▪ Noise <70 dB;
    ▪ Nominal Cadence: different depending on the number of channels;
    ▪ Admissible cork diameter: 21mm; 31mm (min; max);
    ▪ Admissible cork length: 35mm; 54mm (min; max).

GENERAL FEATURES:
    ▪ 2 modes of operation: manual and automatic;
    ▪ Cork output direction (right, left or alternated);
    ▪ Automatic sensor cleaning;
    ▪ Automatic routine to verify the status of each sensor;
    ▪ Independent corks separation on each channel;
    ▪ Possibility to be integrated in an automatic packaging line.
