Feeders

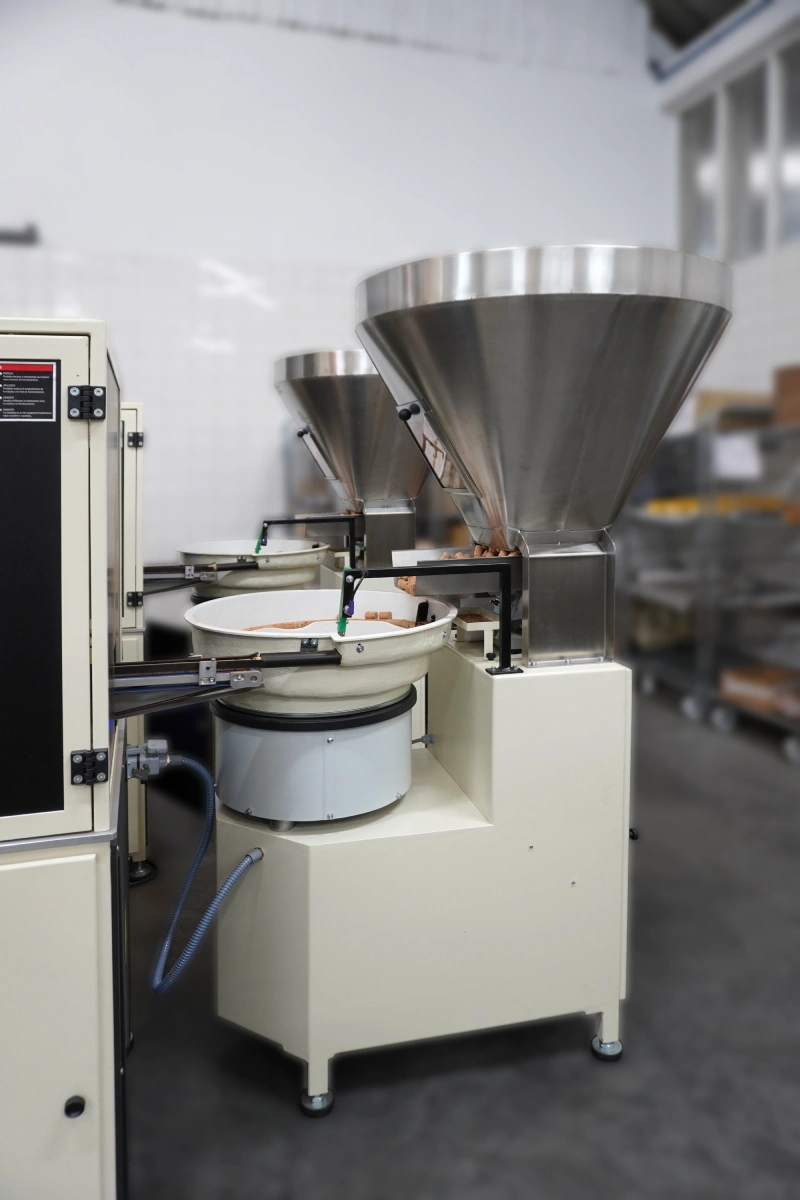

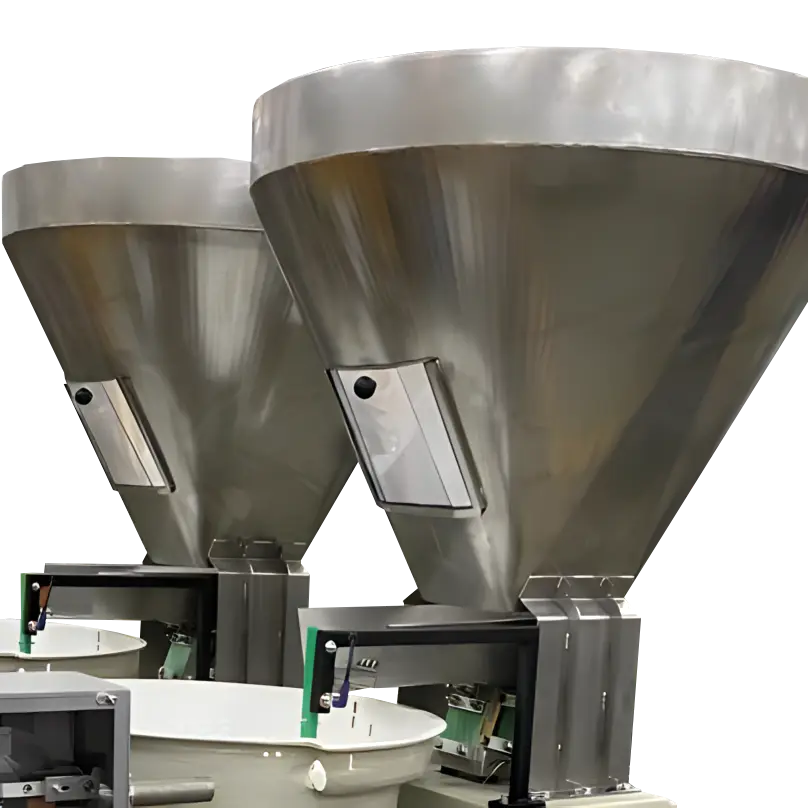

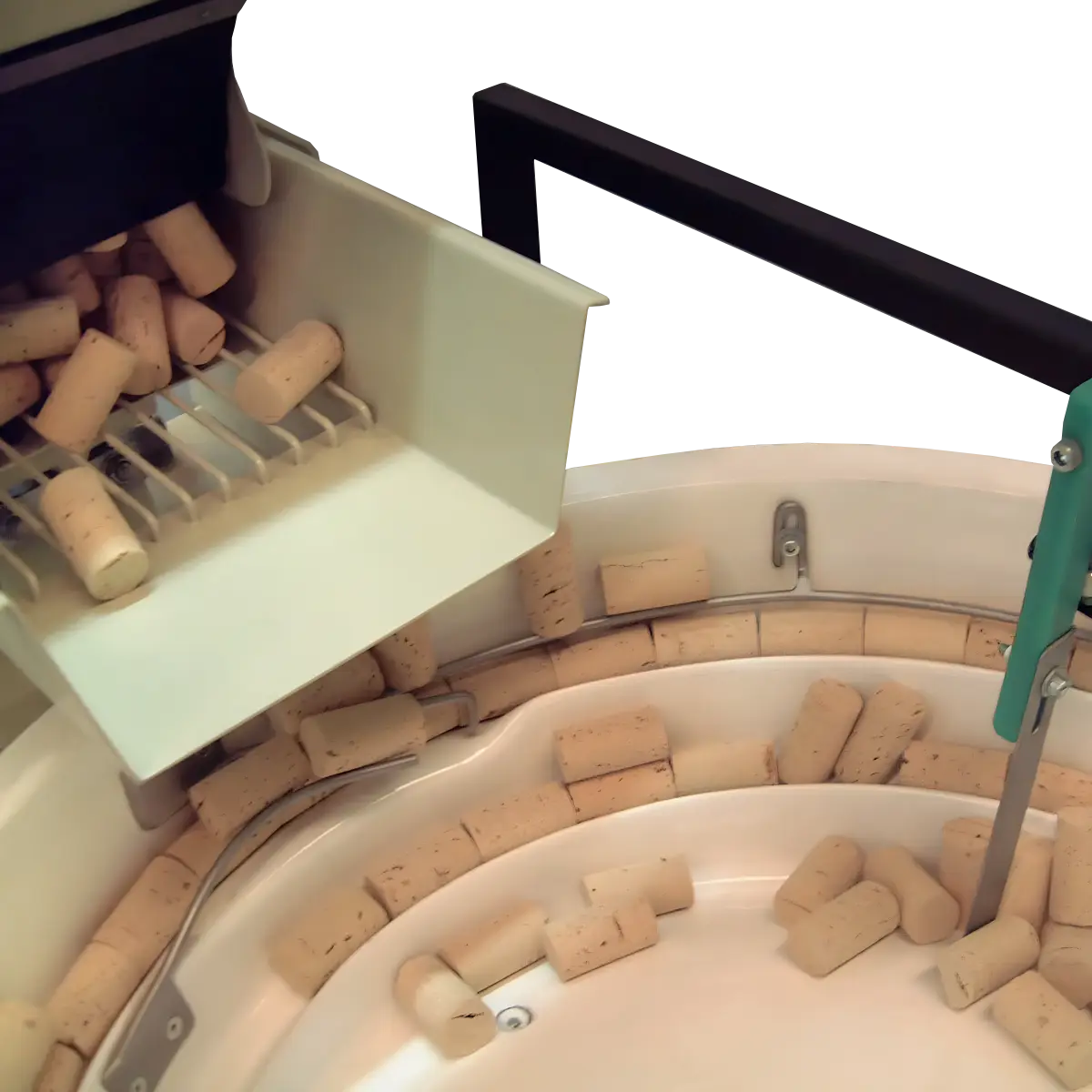

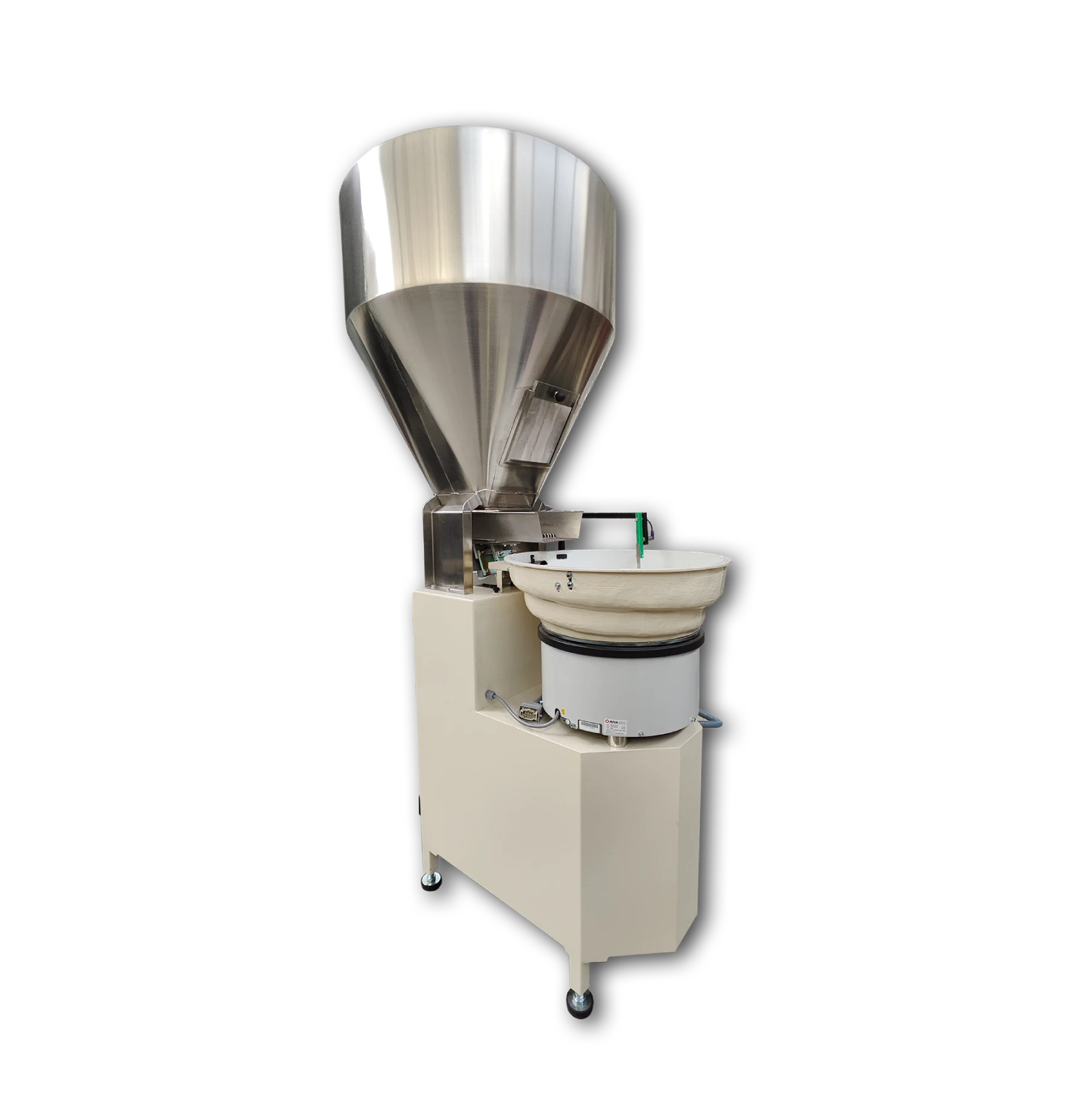

ALM-100 Feeding System composed by Hopper + Dosing + Vibratory Bowl

Imagem Detail
Imagem Detail
Imagem Detail

TECHNICAL FEATURES:
    ▪ Power Supply 220 V (1Ph+N) 50Hz
    ▪ Compressed Air Supply NA
    ▪ Installed Power 1.0 kW
    ▪ Noise <70 dB
    ▪ Nominal Cadence 12 000 corks/hour

GENERAL FEATURES:
    ▪ Possibility to prepare the vibratory bowl for the dimensions desired by the customer, from diameter 20 to 31mm;
    ▪ Possibility to change the speed of the vibratory bowl;
    ▪ Suitable to feed different types of machines (marking machines (all types), sorting, beveling, and top rectifying machines, etc.);
    ▪ Hopper can be manufactured with the dimensions and materials specified by the customer.
